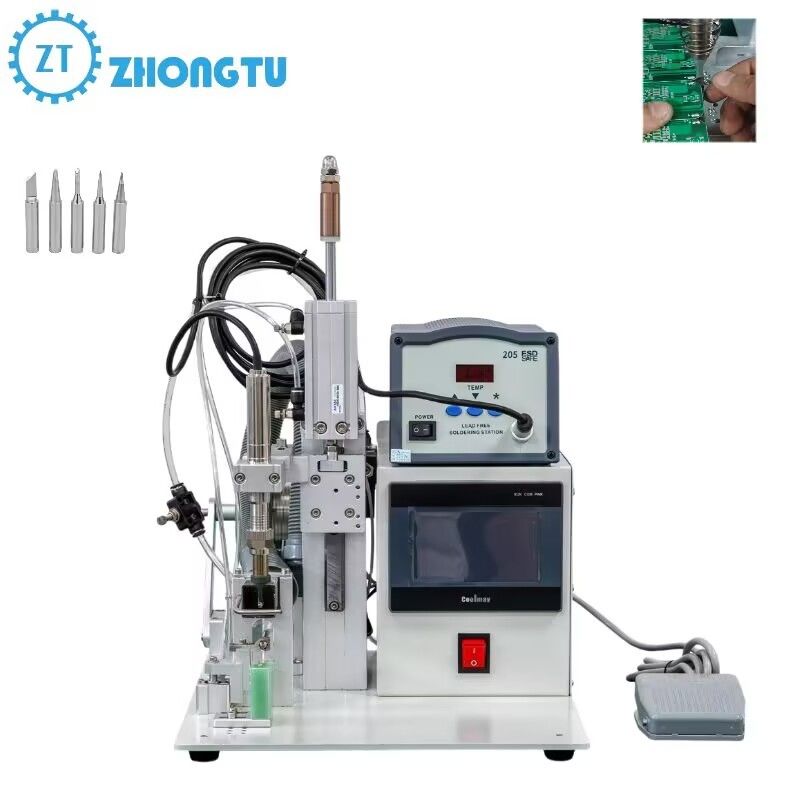

Semi Automatic Soldering Tool Set
Easy operation robot electronics PCBA bonding machine for LCD/LED panel soldering applications.
Product Specifications
| Attribute |
Value |
| Power Consumption |
100W |
| Soldering Iron Weight |
100g |
| Welding Method |
Ultrasonic |
| Customization |
Available |
| Working Frequency |
19.6-20.2KHz |
| Soldering Mode |
Manual |
| Ultrasonic Generator Size |
L370*W420*H170mm |
| Productivity |
900~1200pcs/H |
| Soldering Tin Size |
OD 0.6~1.2mm (saves 15% tin consumption) |
| Welding Area |
0.5-16 mm² |
Key Applications
- PCB Assembly: Ideal for soldering components onto printed circuit boards in mass production
- Component Repair: Effective for repairing or replacing faulty electronic components
- Wire Soldering: Excellent for electrical wire connections
- Automotive Electronics: Used in vehicle electronic component assembly
- Consumer Electronics: Suitable for smartphones, laptops, and appliances
- Telecommunications: For soldering components in telecom equipment
- Industrial Equipment: Applicable in manufacturing industrial machinery
- Prototype Development: Useful for electronic device prototyping
- Low-Volume Production: Flexible solution for small to medium runs
- Technical Education: Used in training programs for soldering techniques
Technical Parameters
| Name |
Semi-Automatic Soldering Machine |
| Place of Origin |
Shenzhen, China |
| Applicable Industries |
Manufacturing Plant, SMT, DIP |
| Input Air Pressure |
0.4-0.8Mpa |
| Weight |
20Kg |
| Voltage |
110-240V/50HZ Output 24V/2A |
| Dimensions |
400*400*500mm |
| Solder Wire |
0.6~1.5mm |
| Core Components |
PLC |
| Temperature Accuracy |
±3° |
| Power |
160W |
| Solder Feeding Speed |
1~50mm/s |
| Soldering Temperature |
0 to 500ºC |
| Repeat Accuracy |
±0.02mm |
Product Description
This semi-automatic soldering machine combines advanced technology with precision craftsmanship to deliver efficient and accurate welding solutions for electronics manufacturing. Featuring an intelligent temperature control system, it maintains precise solder temperature for stable, reliable joint quality.
The machine's unique tin feeding mechanism operates with uniform, stable speed that's adjustable for different requirements. Its intuitive interface ensures easy operation, allowing even beginners to quickly master the system. Built for durability, the equipment maintains excellent performance in high-intensity production environments.
Ideal for electronic assembly, electrical maintenance, and communication equipment manufacturing, this soldering machine helps businesses improve efficiency, reduce costs, and enhance product quality.
Product Images
Our Services
| Pre-Sale |
In Sale |
After Sale |
- Product introduction
- Technical consultation
- Remote consulting service
|
- Product demonstration
- Detailed usage instructions
- Customer Q&A support
|
- Video support service
- 1-year full equipment warranty
- 3-year warranty on guide rail/motor/control parts
|
Frequently Asked Questions
Who are we?
We are based in Guangdong, China, established in 2015 with 50-200 employees in our office.
How do we guarantee quality?
We conduct pre-production samples before mass production and final inspection before shipment.
What products do we offer?
Soldering machines, precision spot welders, glue dispensers, and screw machines.
Why choose us?
We provide ultra-professional service and high-performance equipment at competitive prices.
What services do we provide?
We accept various delivery terms (FOB, CIF, EXW, FCA, CPT) and payment methods (T/T, PayPal, Cash) in multiple currencies.
What is your warranty policy?
1-year warranty for complete unit, 3-year warranty for main board. Contact us for details.
Can I purchase samples?
Yes, we welcome sample orders to evaluate our quality and service.
Are you a manufacturer?
Yes, we're a professional automation machine manufacturer since 2015.
